Long-range shooting tests your limits with every shot, which is where the RX®-2800 TBR®/W Alpha IQ™ digital rangefinder comes in. With accuracy from 1/2 yard to 2,800 yards, 7x magnification, and a red OLED display, this fast rangefinder is sure to expand your skills. Alpha IQ™ allows you to hit smaller targets faster than ever before, while our True Ballistic Range® (TBR®) technology takes into account the angle of your shot and the ballistics of your rifle. Go further faster with the new RX®-2800 TBR®/W Alpha IQ™ digital rangefinder.
Translated with DeepL.com (free version) More

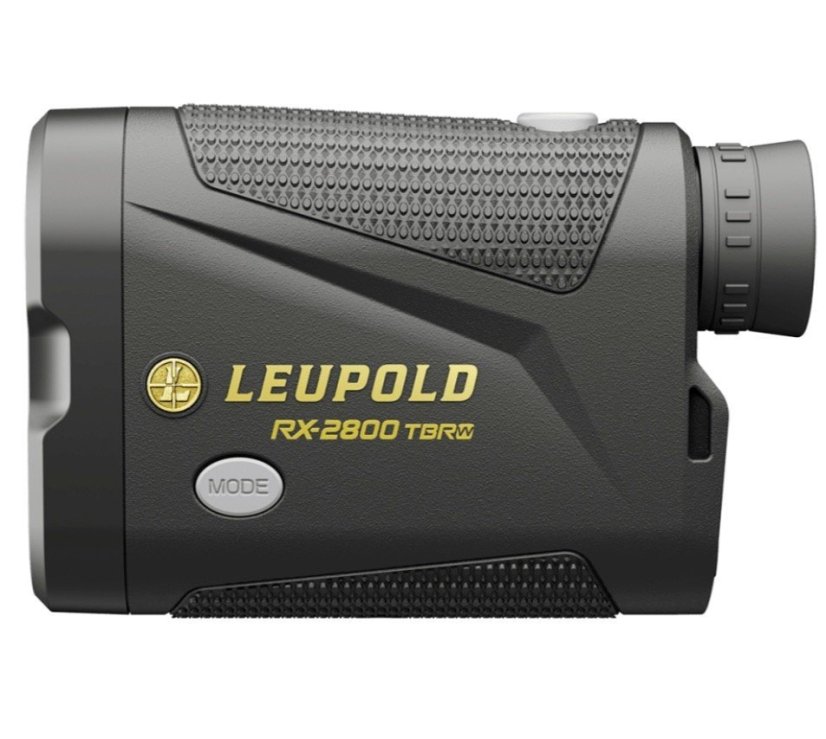

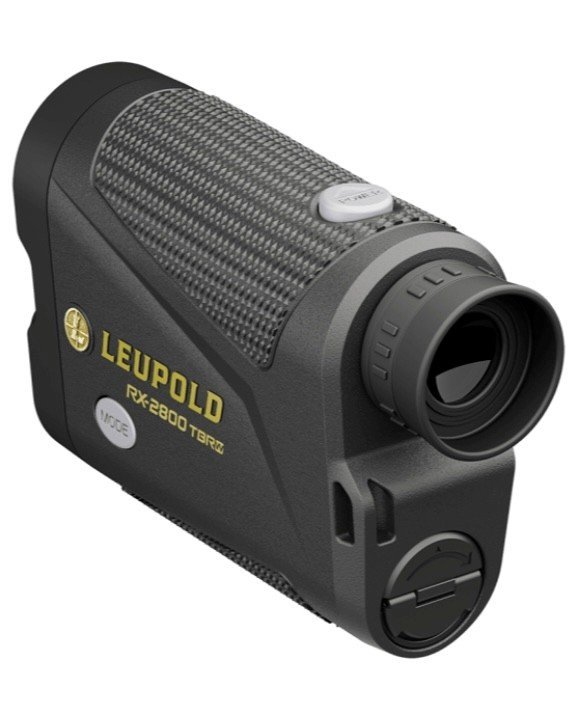

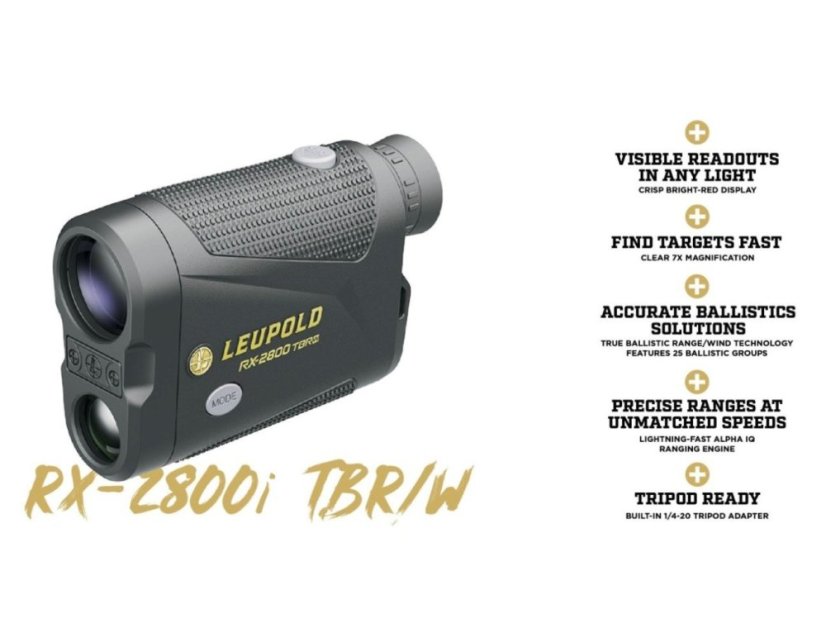

Leupold RX-2800 TBR/W
Alpha IQ
Last Target Mode, Line of Sight Distance (LOS)
Spot Mode & Continuous Scan Mode
Rangefinding Values
Units of measurement: meters or yards
Minimum range: 6.40 m / 7 yd
Maximal range:
Reflective: 2560.32 m / 2800 yd
Tree: 1188.72 m / 1300 yd
Deer: 1005.84 m / 1100 yd
True Ballistic Range/Wind (TBR/W)
Accounts for: distance, wind, inline or decline
Performs up to 731.52 m / 800 yd
Holdover and Windage information in: centimetres, inches, MRAD, or MOA
Indexed to 25 popular ballistic groups
Optional Line of Sight Mode
IEC Class 3R Laser
Wavelength: 895-915 nm
Beam divergence: 1.172 MRAD
Pulse duration: 20 ns
Power: < 5.14 mW
Construction Details
Light-weight aluminium housing
Ergonomic design with textured slip-resistant rubber armour
Dimensions: 154.94 mm x 101.6 mm x 66.04 mm / 6.1 x 4 x 2.6 inches (L x H x W)
Fogproof and waterproof
An internal high-resolution OLED display
Built-in 1/4-20 tripod adapter port
Battery
Powered by 1x CR123 battery
Battery life: > 4000 actuations
In-view power status indicator
Automatic Power-Off after 7 seconds
